• Model: DB-36TRLR
  • Ball Diameter: 36mm
  • Base : 45mm
  • Weight: 380g
  • Height: 85mm
  • Max load: 18kg
  • Bottom threads: 3/8" UNC

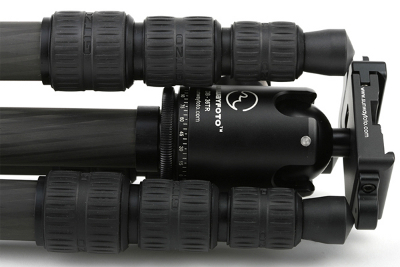

SUNWAYFOTO DB-36TRLR, with Lever-Release Clamp DDC-42LR.  Clamp Length:  42mm.  With 1/4" threaded mounting hole.
Clamp can be removed and mounted onto our other heads or Arca-swiss, RRS, Kangrinpoche ballheads.
Use Metric 5 flat head screw to mount onto a ballhead. Can mount onto 1/4 threaded post.
SUNWAYFOTO makes the ballhead balls from ellipsoidal form into more closer to spherical form.  At present, all of the better
makes of heads are ellipsoidal designed to produce progressive resistance to reduce accidents. In most cases  the  Y-axis diameter of the ball is about 0.07mm longer than the X-axis.
SUNWAYFOTO only makes the ball Y-axis diameter only 0.03mm longer than the X-axis. The progessive resistance is still  present , but now the operation is silky smooth.
DB-36TRLR has two drop notch design. One for portrait, one for tilting. We have strengthened the shell through rigorous testing.
Control knobs are 100% metal with no plastic or rubber, To ensure the operational smoothness, and also enhance the reliability and durability.

Features
2. All features are the same as DB-36LR except that the base size is reduced to minimize the width and make it ideal for travel.
Please refer to DB-36LR for more details.

  Using Lever Release Clamp           Lever Release Clamp Left-Right Convertible
